LiteProbe is DingLi's next generation ultra-portable handheld device for LTE-IoT RAN and data services verification. Various key radio parameters and cell information are displayed on LiteProbe’s OLED screen, providing an instant view of the performance.
Overview of Pilot LiteProbe
The device shall grade the measured quality (e.g. as Excellent, Good, Average, Below Average, Poor) according to the configurable evaluation standards. LiteProbe uses various data services testing (depending on the test mode employed) for the real-time evaluation or post process the collected data with other DingLi's solution.
Highlights
Streamlined LTE IoT Network Validation
Streamlines LTE IoT network performance verification, no technician needed.
Network Coverage and Quality Assessment
Ensures accurate detection of network coverage and quality.
Alternative to Pro Network Optimizers
Offers a more cost-effective option compared to professional network optimization devices.
Portable, Compact, and Long Battery Life
Boasts a compact, portable design with an extended battery standby period.
Outdated IoT Sensors to Real-time Data
Provides a seamless replacement for LTE IoT sensors that may not convey the current network status.
Mimicking LTE IoT Network Perception
Effectively simulates LTE IoT network perception for comprehensive testing.
Main features
Portable, Compact and Easy to Use

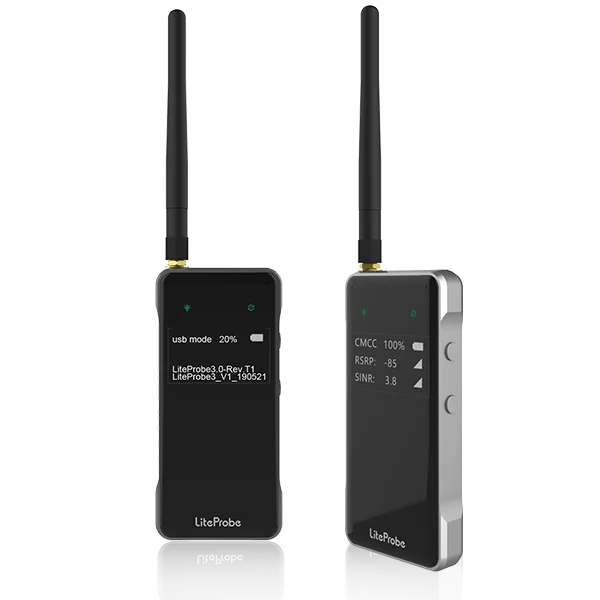

This solution is designed to be portable, compact and easy to use, with a handheld device that fits in your palm like a regular phone and clearly displays the necessary measurements and evaluation standard directly on the OLED screen.
Key Measurements and Evaluation Grades
This solution provides real-time on screen display of key network measurement parameters, such as RSRP, SINR, TxPower, PCI, EARFCN, Cell ID, eNodeB and RSSI, while automatically grading the network performance based on the configurable evaluation standards.
LTE-IoT Service Test

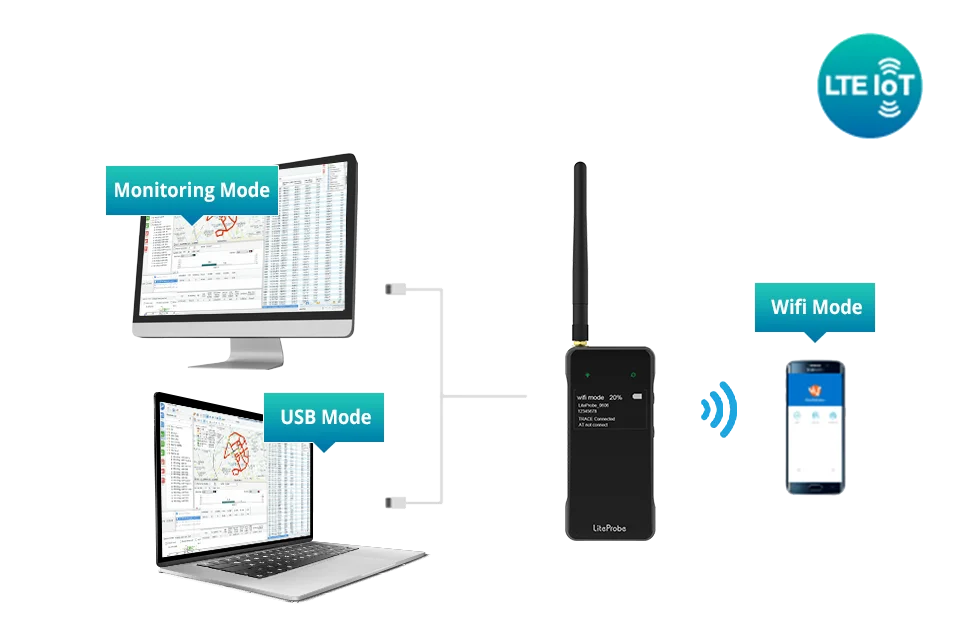

This solution provides LTE-IoT Service Test options, such as standalone or monitoring Mode for Pings, Attaches and Idles, WiFi Mode for FTP, Attaches, Pings, UDPs and Idles, and USB Mode for Pings and UDPs through AT commands, as well as Pings and UDPs over PPP (i.e. AT/PPP Ping, AT/PPP UDP).
Processing and Analysis
Process and analyse test data according to the test mode. Remote processing and analysis with Pilot Fleet Edge in monitoring mode. Data presentation and analysis in Pilot Walktour or Pilot Pioneer if WiFi or USB mode are used respectively.
Portable, Compact and Easy to Use
This portable and compact device fits in your palm like a regular phone and clearly displays the necessary measurements and evaluation standards directly on its OLED screen, making it easy to use and deliver efficient results.
