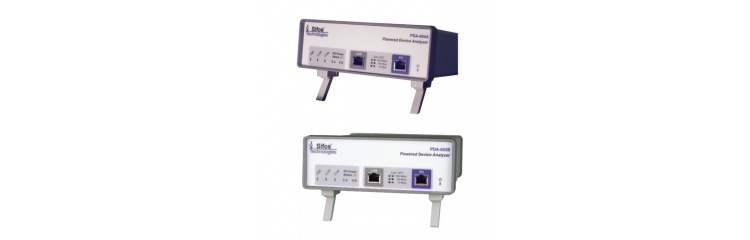

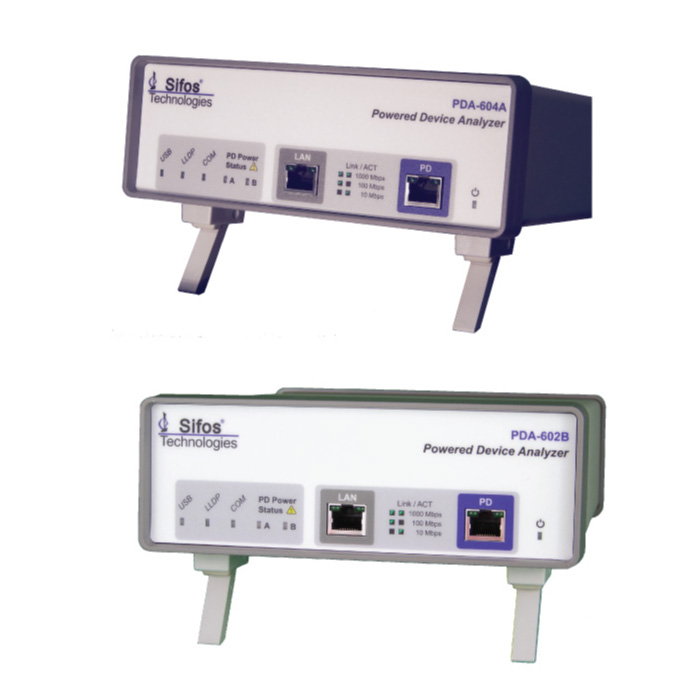

Powered Device Analyzer


Ethernet Powered Device Analyzer

The One-Box solution for 802.3 Ethernet Powered Device testing and verification including flexible emulation of PSE behaviors, scalable feature configurations, and plug’n play testing using a Windows PC.


Emulate any 802.3at Type-1, Type-2, 802.3bt Type-3, or Type-4 PSE powering 2 or 4 pairs at all possible PD input voltages. Optionally supports 802.3at and 802.3bt Ethernet Powered Device Conformance Test Suites and LLDP Emulation and Analysis.br />
Key Features
  • Scaleable PSE and Cable Plant Emulations
  • Optional Automated PD Conformance Test Suite(s)
  • Optional Automated Load Monitor Assesses Average, Peak, Tcut Window, and MPS Power Compliances
  • Accurate Metering: Voltage, Current, Power Sampling at PD Interface
  • 10/100/1000Base-T Switched Network Interface for Remote PD Control
  • USB Interface for Plug'n Play Instrument Control
  • PDA Interactive Graphical User Interface
  • PowerShell PDA Interactive Scripting Environment
  • Binary API (DLL) for Integration to other Programming Environments
  • Extensive Reference Documentation
  • Compliance Tested for Safety and Emissions


Emulate all Type-1 and Type-2 PSE’s, powering 2-pairs up to 41W at all PD input voltages. Optionally supports 802.3at PD Conformance Test Suite and LLDP emulations.
