PowerSync Programmable Load

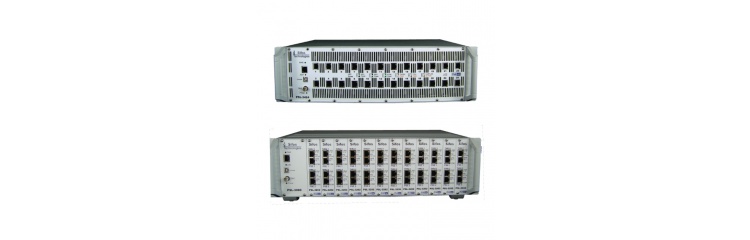

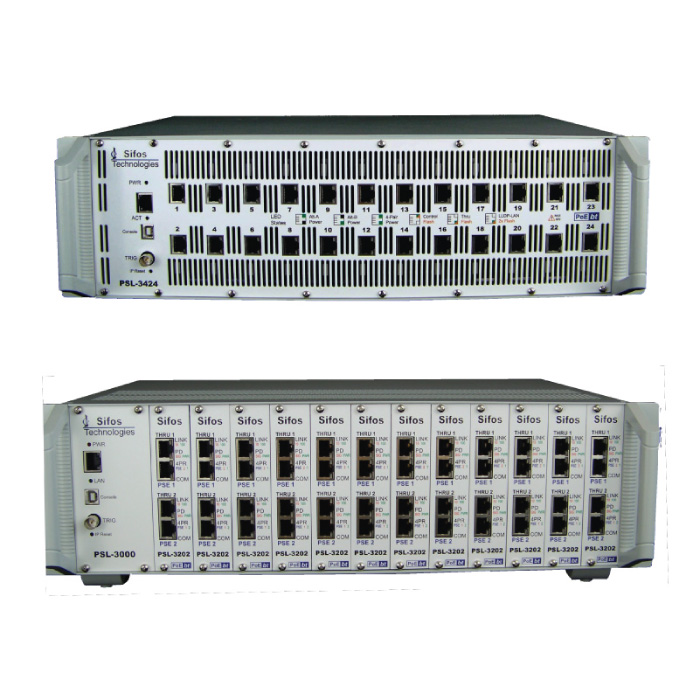

PSL-3424, PSL-3000

The PSL-3424 is Sifos’ newest member to the PSA-3000 family of PSE test instruments. It uniquely offers capability to continuously load up to 24 4-Pair, 100 watt capable PSE ports simultaneously. It also introduces new testing features not previously available in the PSL-3000 Programmable Load.

The PSL-3000 is Sifos’ lowest cost-per-port solution for PSE loading and testing. It supports the 2-Pair Multi-Port Suite including the 2-Pair Multi-Port Test Suite for automated PSE system and power management analysis. It can provide continuous 99W loading on up to 12 802.3bt PSE ports simultaneously.

Both instruments are managed using PSA Interactive and PowerShell PSA software environments and, like the PSA-3000, both instruments are fully certified to industry safety and emissions standards.

Key Features: PSL-3424A / PSL-3424L
  • Continuous 4-Pair Loading > 99 Watts Per PSE Port x 24 Ports
  • Continuous 2-Pair Loading > 47 Watts Per PSE Port x 24 Ports
  • Robust Software Including PSA Interactive Graphical User Interface
  • Flexible 802.3at / 802.3bt Powered Device Emulation Including PoE LLDP (PSL-3424L)
  • Efficient Cooling with Smart Fan Control, 15 dB quieter than PoE5
  • Comprehensive Safety and Compliance Certifications
  • Fully Automated, One-Click PSE Inspection Testing
  • One-Click Specification Limit Load Cases
  • Efficient Snaked Data Testing of 10/100/1000 and Multi-Gig Ports
  • Fully Automated PoE LLDP Protocol Analysis
  • High Level Script Automation with Powerful Single Command Utilities
  • NEW! Optional Multi-Port Live PD Emulation and Power Management Analyzer Suites for 802.3at/802.3bt PSEs

Key Features: PSL-3000 / PSL-3224
  • Connect up to 24 802.3at and/or 802.3bt PSE Ports
  • Supports 2-Pair (802.3at/802.3bt) PSE Multi-Port Suite
  • Supports PoE LLDP Emulation / Analysis
  • Continuous 2-Pair Loading > 47 Watts Per PSE Port x 24 Ports
  • Continuous 4-Pair Loading > 99 Watts Per PSE Port x 12 Ports
  • Flexible 802.3at / 802.3bt PD Emulations
  • PSA Interactive (GUI) and PowerShell PSA (script automation) Software
  • DC Voltage, Current, and Power Metering on 2-Pair and 4-Pair PSE’s
  • Supports PSE Packet Transmission Testing with PoE Loads
  • Smart Fan Control – Runs Cool and Quiet
  • Fully Certified Commercial Test Instrument, Extensively Documented
