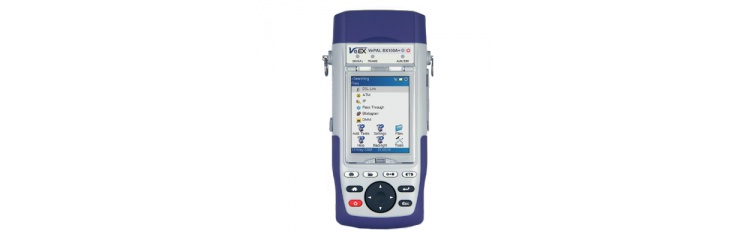

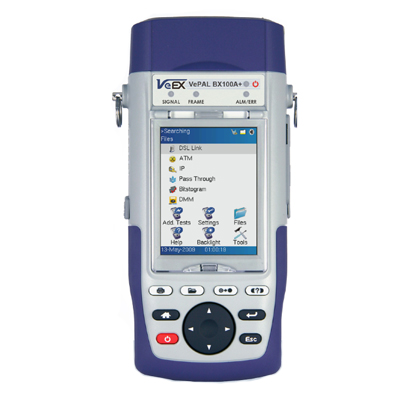

ADSL network testing simplified
Comprehensive ADSL2+, ADSL2, ADSL link turn-up capabilities including ATM and IP test features all supported in a single compact handheld unit. Triple Play service verification of VoIP, IPTV, and high speed Internet is made possible using powerful IP and Web test features including Web Browser. Service testing can be performed on either the DSL line using Modem Emulation mode or on the Ethernet port while connecting and emulating a PC. WiFi and CAT-5e cable testing are powerful features for in-home installations.
Highlights
- Platform Highlights
- Intuitive presentation of measurements with test graphics
- High resolution color touch-screen viewable in any lighting conditions fitted with protective cover
- Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions
- Optimized for field engineers or technicians installing and maintaining ADSL networks enabling Triple Play services

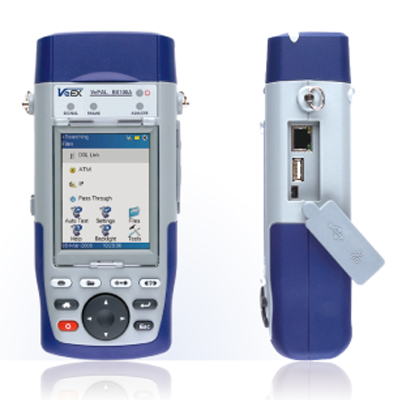

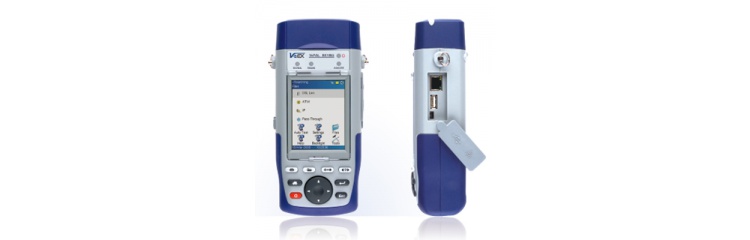

- Ethernet port and connection for back office applications, workforce management and Triple Play service verification
- User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
- USB memory stick support and FTP upload capability for test result storage and file transfer respectively
- Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using included ReVeal™ PC software
- Extend field testing time using interchangeable LiIon battery pack/s. Greater battery autonomy provided in standby mode
- Supports advanced IP testing; Ping, trace route, ARP Wiz, VoIP, IPTV, WiFi, web browser, and FTP upload/download via Ethernet or USB port where applicable
- NetWiz cable diagnosis with network statistics
- VoIP call emulation and MOS performance analysis
- WiFi Wiz site survey with Internet connection test
Key Features
- ADSL2+/ADSL2/ADSL modem emulation per ITU standards
- Automatic link turn-up after power-on or connection to line
- Fast display of link-up results: upstream/downstream data rates, noise margin, latency, attenuation, training time
- Loop length estimation capability
- Graphical and tabular representation of bits per tone
- FEC, HEC and CRC count for upstream and downstream paths
- ATM OAM loopback cells functionality
- Scanning of multiple PVCs and analysis of traffic
- Multiple encapsulation methods
- Terminate, Pass-Through and Terminal Equipment test modes
- Annex B (ADSL/ISDN) support
- Annex M support
- Impulse Noise Protection (INP) support
- Advanced IP connectivity test functions over ADSL interface
- IPTV stream analysis: MPEG2, MPEG4 Part 10 (H.264) and VC-1 in ADSL Terminate mode (modem emulation)
- IGMP latency (channel zapping), Media Delivery Index (MDI) and Primary Clock Reference (PCR), and jitter measurements
- POTS Expert for placing and receiving DTMF calls
- DMM for measuring AC/DC voltage and current, loop resistance, and leakage resistance

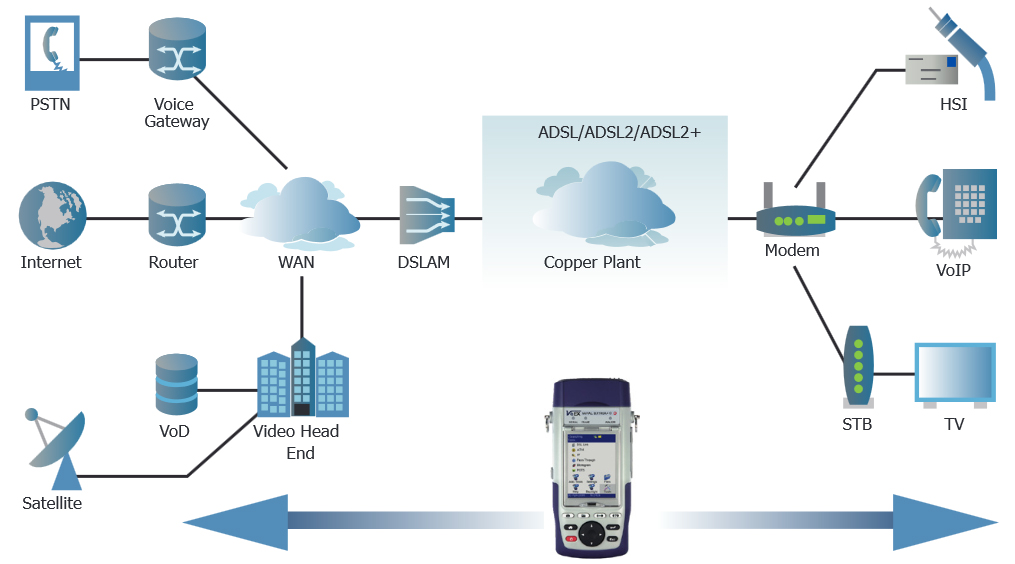

Applications
