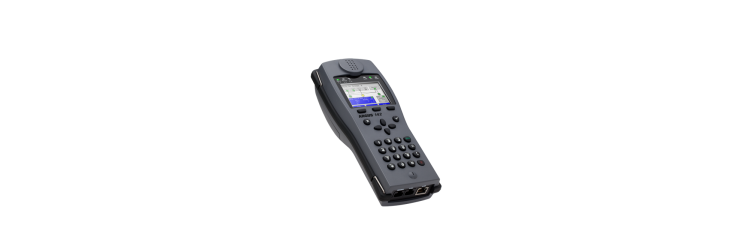

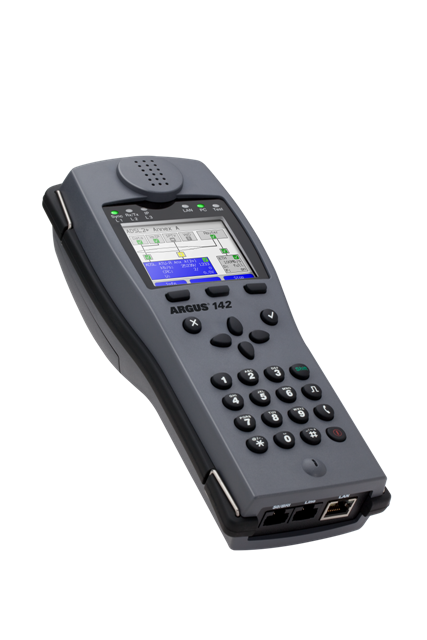

Argus 142

Multifunctional measuring equipment at a fair price: the ARGUS 142 quickly and reliably tests interfaces and services down to the last detail. VDSL2, ADSL, Ethernet, ISDN BRI S/T/U and POTS, plus the physical conditions of the subscriber line are extremely easy to test – without having to swap modules.

The functions of the ARGUS 142 include at least one DSL and an Ethernet interface as standard, plus RC testing, voltage measurement, DMT Analysis and the Line Scope. Copper tests (Cu tests) can be used to assess the line quality even without synchronization to the far end.

Easy testing of Triple Play services: the analyzer offers Triple Play analysis as an option to verify VoIP, IPTV and data services via xDSL and Ethernet.

The ARGUS 142 not only simulates terminal equipment such as a phone, PC or STB, it also determines all relevant quality of service parameters. As a digital lineman’s handset, the unit evaluates the voice quality, e.g. delivering a MOS value using the E model, or IPTV suitability using the Media Delivery Index (MDI).

The ARGUS 142 is extremely user-friendly thanks to its large 320 x 240 pixel color display and intuitive menu structure. A powerful Li-ion battery pack ensures extended operating times.
