Optical Test Switch Series
Optical Switches for High Capacity Applications
The OXC-4000 series switches are designed specifically for testing fiber dense networks and can be controlled directly by the RTU/RFTS test probe or remotely via VeEX's VeSion server. It can be easily cascaded to allow a single RTU to monitor up to 4608 fiber ports. The OXC-4000 can be located with the RTU or even off-site at nodes with multiple fiber branching and controlled over ethernet.
Platform Highlights

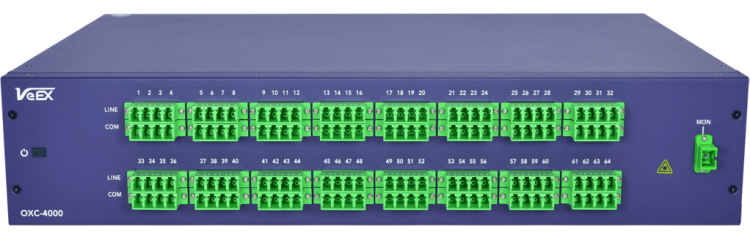

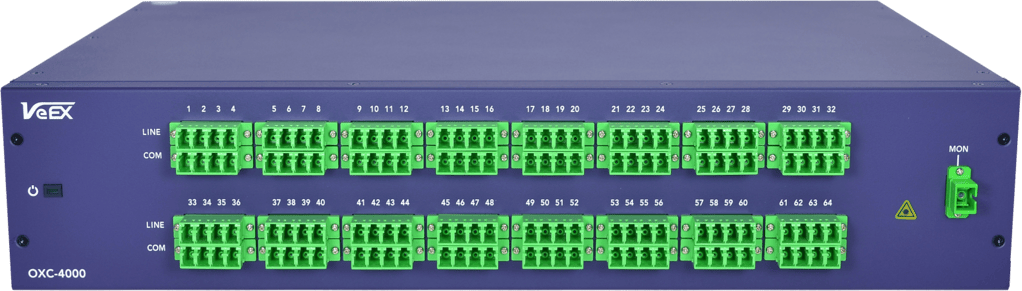

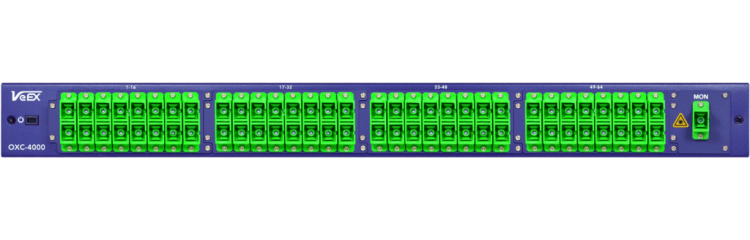

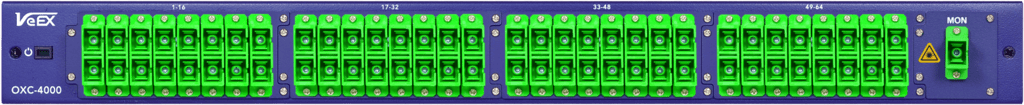

- MPO/APC, SC/APC or LC/APC connector configurations

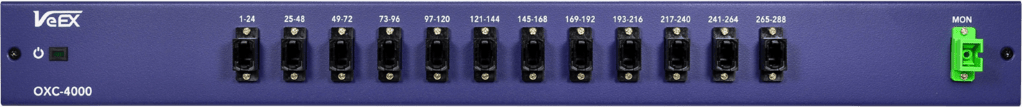

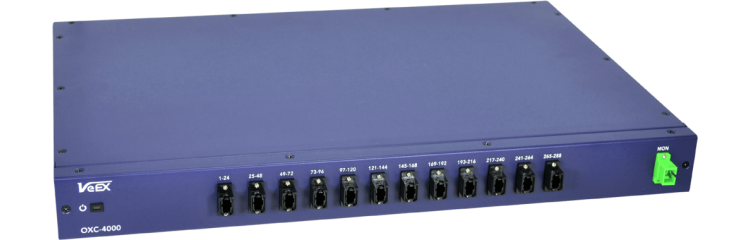

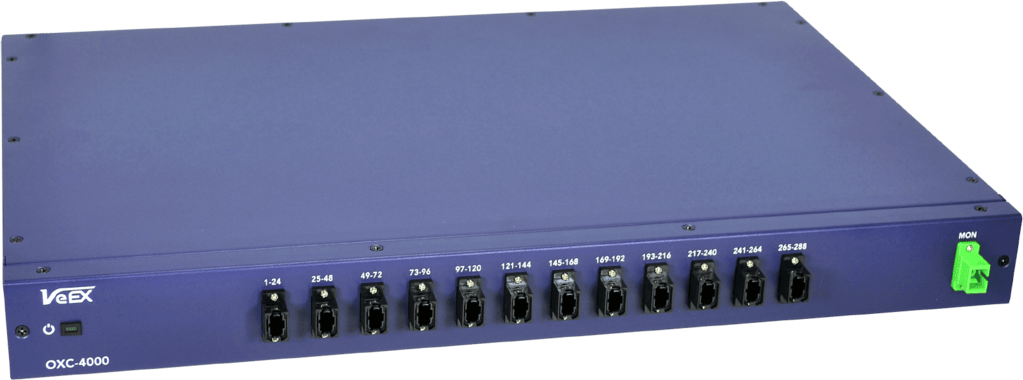

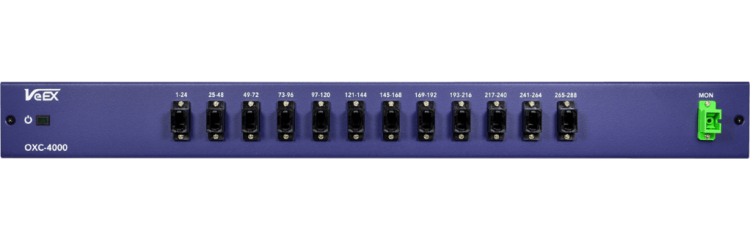

- Up to 288 ports in a single 1U rack (MPO-24 connectors)
- Controlled by VeSion server or RTU/RFTS via Ethernet interface
- Support integrated FWDM for in-service monitoring
- Cascading of multiple switches to support higher fiber counts or custom configurations
- MEMS switch technology for up to 288 port counts
- Compact rack-mount design with 300 mm depth
- Flush mount or up to 4-inch recessed rack mount bracket options
- Left or right-angled facing bulkhead connectors to facilitate easy fiber patch cord management
- Dual input powering options (5VAC or -48 Volts DC)
- Compatible with an existing OXA-4000 series switches via VeSion Ethernet/IP connection
Key Features
- Low insertion loss
- Wide and flat passband
- Fast switching time, <15 ms for adjacent channels
- Extremely low power consumption
- Protocol and bit-rate independent
- Single fiber support
- Low back reflection and PDL performance
- Compatible with external FWDM to support in- service monitoring at 1625 nm or 1650 nm wavelength
- High reliability and long lifetime > 1 billion cycles
- Wide operating temperature range
