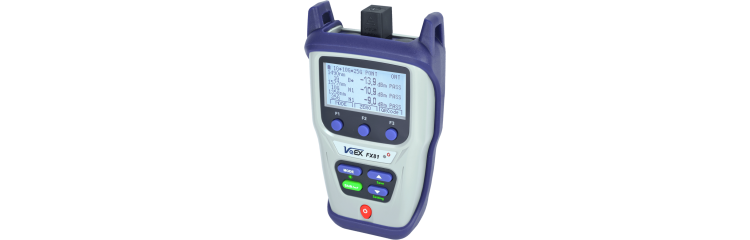

1G/10G/25G PON Optical Power Meters
Optical power meter for installation, service activation and troubleshooting of B/GPON, XG(S)-PON, 25G PON, EPON and 10G-EPON fiber networks. Pass-through design to measure multiple downstream and upstream signals simultaneously for ONU/ONT verification or non-pass through/terminated OLT verification.
Key Features
- Compatible with both GPON and EPON fiber networks
- GPON, XG(S)-PON, and 25G PON test applications
- EPON and 10G-EPON test applications
- 4 models available:
- 2 λ non-pass-through/terminated DS: 1490/1577nm (FX81T)
- 3 λ non-pass-through/terminated DS: 1358/1490/1577nm
- 4 λ pass-through DS: 1490/1577nm, US: 1310/1270nm
- 5 λ pass-through DS: 1490/1550/1577nm, US: 1310/1270nm

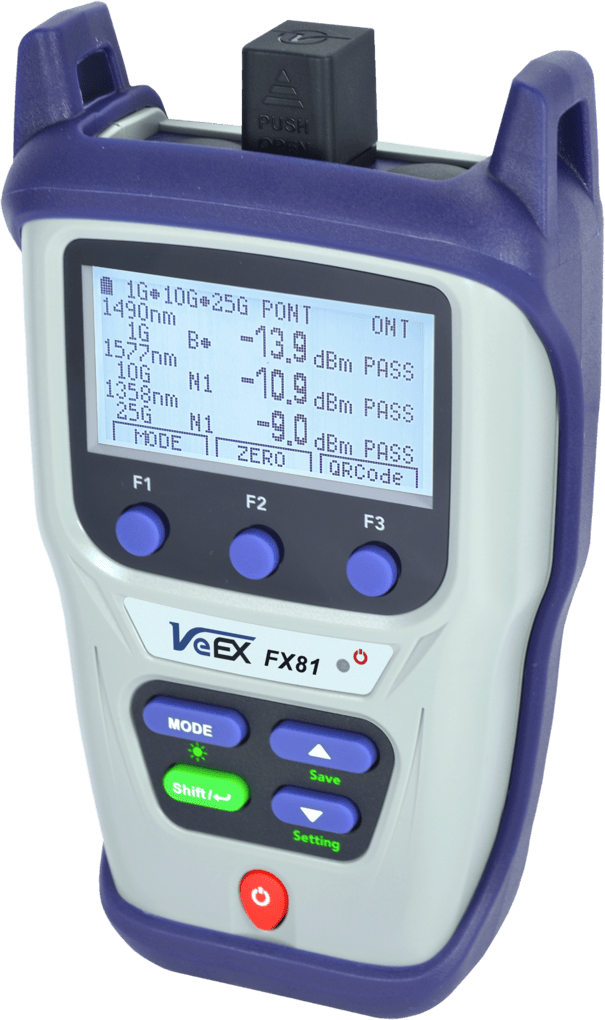

- Concurrent measurements display

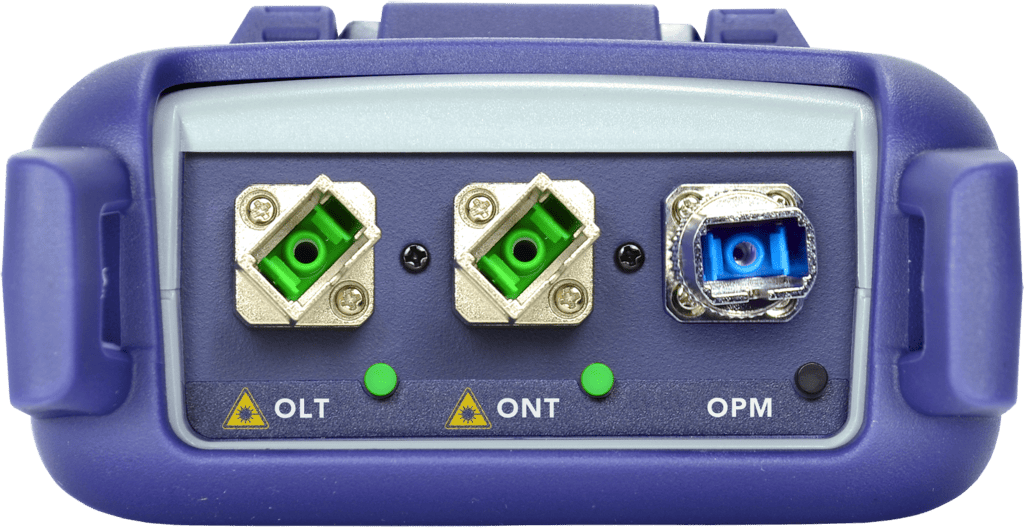

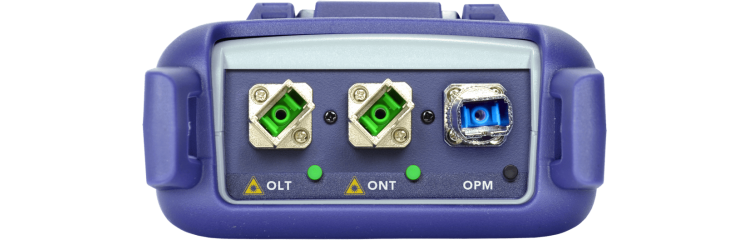

- Fixed SC/APC Interface for ONU and OLT test ports
- Programmable thresholds with Pass/Fail indication
- Optional broadband power meter with universal adapters
- WaveID support when paired with compatible VeEX source
- Non-volatile storage for 1920 OPM
- Flexible data transfer, test result management and report generation options using:
- Patent-pending NoAppTM QR code transfer
- LT-Sync PC software (microUSB or optional Bluetooth)
- FiberizerTM for Android, Windows, and cloud
- High contrast LCD - visible outdoors, programmable backlight for indoor or low light conditions
- Battery: Built-in, rechargeable Li-polymer
- Battery operating time (with backlight):
