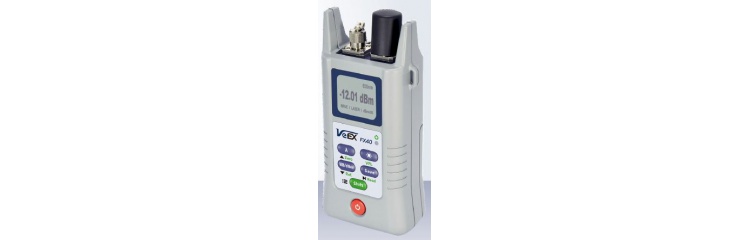

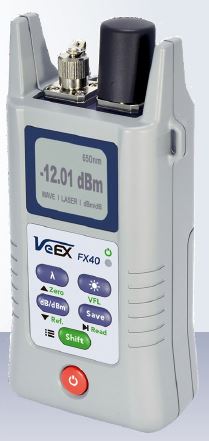

VeEX FX40-OPM
The add to cart button will appear once you select the values above
KEY FEATURES
Singlemode and Multimode testing
PON, Telecom, CATV and LAN/WAN applications
Dual wavelength laser source and power meter options
High accuracy and wide dynamic range
Save OPM measurements (> 100 single results)
Transfer stored results to a PC via USB for report generation, printing and Fiberizer Cloud upload
Reference power level setup and recall
Splash resistant keypad and chassis design
High contrast display - Visible outdoors and backlight for indoor or low light conditions
Alkaline or Rechargeable battery option with Auto power off
Field interchangeable optical adaptors support multiple connector types and allow easy access for cleaning
KEY SPECIFICATIONS
Wavelength range: 800 nm to 1700 nm
Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
OPM Detector type: InGaAs 1 mm
Power Measurement range:
-65 to +10 dBm (PM1)
-50 to +25 dBm (PM2)
Accuracy: +0.2 dB or 5%
Linearity: 0.1 dB
Display resolution: 0.01 dB
Communication port: micro USB
Connector interface: FC/SC/ST/LC, Universal 1.25/2.5 mm adaptors Interchangeable
Battery: Alkaline, Optional NiMH AA type
Accepts standard 5V micro-USB power adaptor
Battery operating time: 100 hours (without backlight)
CE compliant
Laser Safety Class: IEC 60825-2:2007, OLS: Class 1, VFL: Class 2M
