Description:

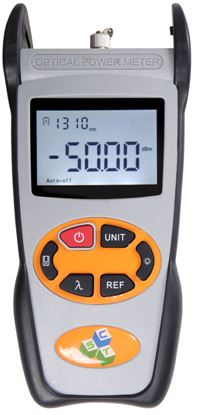

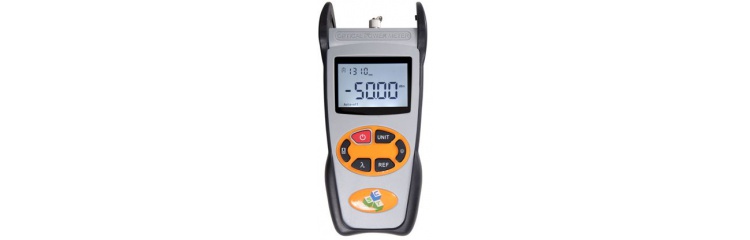

STC-OPM101A is a full-function optical power meter,it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with STC-OLS201A optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the STC-OPM101A has more great functions/features of automatic wavelength identification and switching, as well as intelligent backlight control. Also this type has features of good appearance, good touch feeling and considerate humanization design.
Feature:
Wave ID—Automatic wavelength identification and switching (when used with STC-OLS201A handheld light source);
Frequency ID/Tone detection---Automatic frequency identification;
Data storage function, up to 1000 test records;
USB communication port to download the saved testing records;
Reference power level can be set up and stored;
Auto-off function can be activated or deactivated;
AA alkaline and AC adapter for power supply;
Low battery indication.
Specification:
|
Type
|
STC-OPM101A-L
|
STC-OPM101A-H
|
|
Calibrated（nm）
|
850,1300,1310,1490,1550,1625nm
Others can be required on requests
|
|
Detector type
|
InGaAs
|
|
Measurement Range（dBm）
|
-70～+6
|
-50～+26
|
|
Detector Area
|
Ø 1.0mm
|
|
Uncertainty (dB)
|
±0.15（3.5%）
|
|
linearity (dB)
|
±0.02
|
|
Display resolution(dB)
|
0.01
|
|
Frequency ID（Hz）
|
270，330，1K，2K
|
|
Wave ID（nm）
|
850, 1300, 1310，1490，1550，1625
|
|
Data storage capacity
|
1000
|
|
Communication Port
|
USB
|
|
Optical Connector type
|
FC,SC,ST interchangeable(LC can be required )
|
|
Alkaline battery
|
3XAA，1.5V
|
|
Power Supply Adaptor(V)
|
8.4
|
|
Battery Operating time (h)
|
200
|
|
Operation Temperature(℃)
|
-10～+60
|
|
Storage Temperature(℃)
|
-25～+70
|
|
Outline size（mm）
|
200 X90 X50
|
|
Weight（g）
|
285
|
