Description

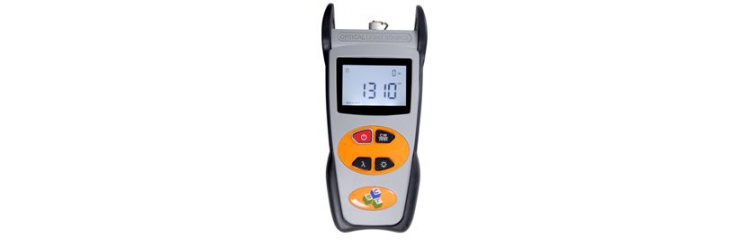

STC-OLS201 is a simple and cost-effective fiber optic tester,it is usually used together with fiber optic power meter to measure the optical loss on fiber cables. STC-OLS201 series light source provide multiple wavelength output, the wavelengths can be required on customer specific requirements (the Max wavelength is 5, such as 850/1300/1310/1490/1550nm).
Features
- Provides 2~5 output wavelengths;
- CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths;
- High stability of the output power;
- Stable output wavelength;
- Backlight LCD display supports night operation;
- Compact size and decent appearance;
- Large LCD, easy operation;
- Alternative 10 minutes Auto-off function conserving battery life.
Specifications
|
Type
|
STC-OLS201
|
|
Wavelengths(nm)
|
1310/1550 or 850/1300
|
850/1310/1550
|
850/1300/1310/1550
|
850/1300/1310/1490/1550
|
|
Emitter Type
|
FP-LD,LED or others please specify
|
|
Typical Output Power (dBm)
|
-7dBm for LD, -20dBm for LED
|
|
Spectral Width(nm)
|
≤10
|
|
Output Stability
|
±0.05dB/15mins; ±0.1dB/ 8hours
|
|
Modulation Frequencies
|
CW,270Hz,1KHz,2KHz
|
| Optical Connector |
FC/PC (or FC/SC/ST interchangeable connectors) |
|
Power Supply
|
Alkaline Battery(3 AA 1.5V batteries)
|
|
Battery Operating Time(hour)
|
45
|
|
Operating Temperature(℃)
|
-10~+60
|
|
Storage Temperature(℃)
|
-25~+70
|
|
Dimension(mm)
|
200 X90 X50
|
|
Weight (g)
|
285
|
