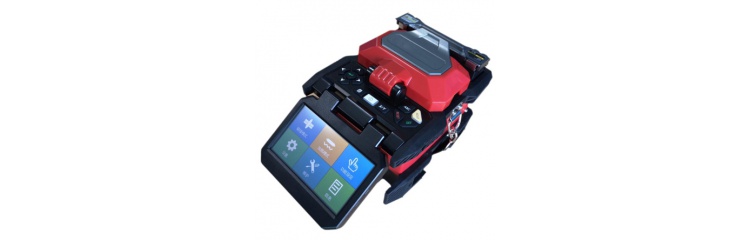

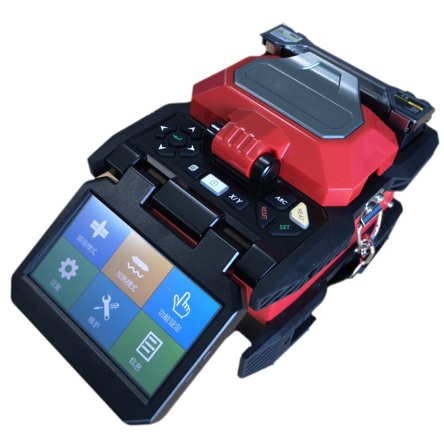

This Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.
Features
- 6 Motors
- Core to core Alignment method make lower splicing loss
- Small size, light weight
- 7s fast splicing, 18s highly efficient heating
- 320 times image magnification, 5mm fusing for ultra-short cleave length
- 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
- Ceramic presser foot, ceramic V-groove, all-in-one fixture
- Dual-directional fusing, auto fusing, intelligent heat shrink
- USB and SD card interface, auto update of U disk
- Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles

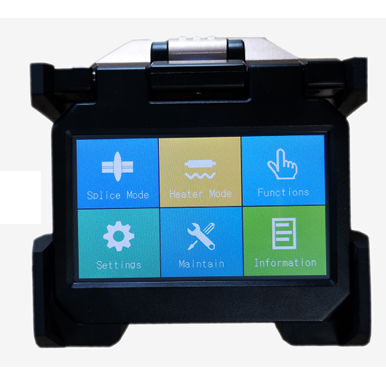

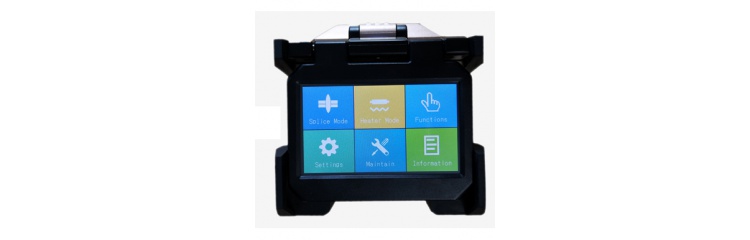

- GUI (graphical user interface) and touch screen, convenient for operation
- Dust-resistant, water-resistant, shock-resistant, greater environment adaptability
