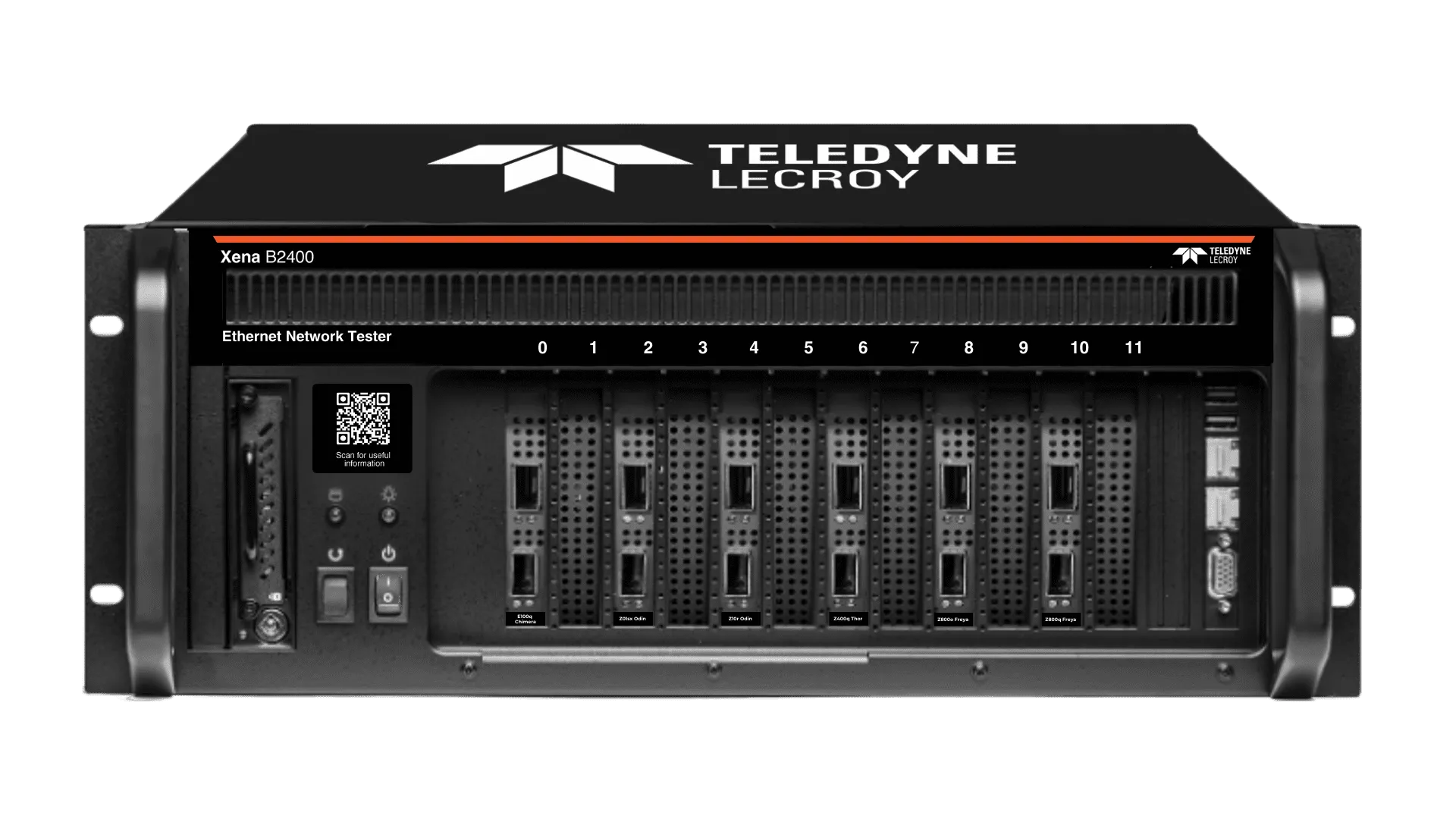

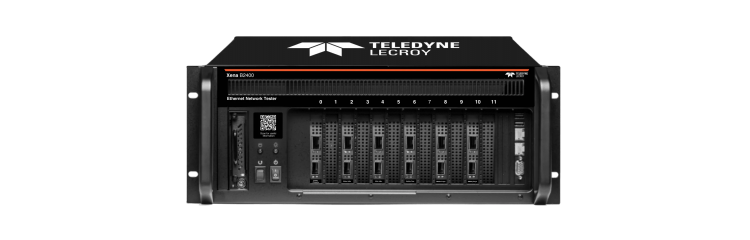

The Xena B720/2400 is a 4U modular chassis that can be equipped with up to 12 Ethernet test modules to provide high port density and low power consumption.
One Xena B2400 can hold up to:
- 4 x 800 Gbps based on Z800 Freya
- 8 x 400 Gbps based on Z800 Freya
- 16 x 200 Gbps based on Z800 Freya
- 32 x 100 Gbps based on Z800 Freya
- 48 x 50 Gbps based on Z100 Loki
- 24 x 40 Gbps based on Z100 Loki
- 96 x 25 Gbps based on Z100 Loki
- 96 x 10 Gbps based on Z100 Loki
- 72 x 5 Gbps copper based on Z10 Odin
- 72 x 2.5 Gbps copper based on Z10 Odin
- 72 x 1 Gbps copper/optical based on Z1 Odin
There are 2 versions of the Xena chassis: the standard B720 and the high-performance B2400.
The XenaBay offers ultimate configuration options making it possible to deploy a wide range of test module configurations in the same XenaBay chassis. In the B720 chassis users can make configurations ranging from 10Mbps to 10Gbps with modules from the Odin series.
The B2400 is required for these TGA test modules: Z800 Freya, Z400 Thor, Z100 Loki as well as the Chimera network emulation module: E100 Chimera.
In the B2400 users has the ultimate flexibility, making it possible to make configurations ranging from 10Mbps to 800Gbps utilizing all available modules from the Xena product series. Both XenaBay’s has 12 avaiable slots for test modules, and each module series occupies the following slots in the chassis’:
- Z800 Freya 3 slots (2 slot module + 1 slot for mandatory airflow guide)
- Z400 Thor 3 slots (2 slot module + 1 slot for mandatory airflow guide)
- Z100 Loki 1 slot module
- E100 Chimera 1 slot module
- Z10 Odin 1 slot module
Example: 1 x Z800 Freya (3 slots) + 1 x Z400 Thor (3 slots) + 4 x Z100 Loki (4×1 Slots) + 2 x Z10 Odin (2x1Slot)
For ultimate utilization of slots in the B2400, consider where multi-slot modules are installed.
Physical Specifications
- 12 slots in a 4U high chassis
- 6.7” (H) x 17” (W) x 17.9” (D) (17 x 43.5 x 45cm)
- 36.4 lbs (14.5 kg) (B720) with no test modules installed
- 39.0 lbs (17.7 kg) (B2400) with no test modules installed
- Max. noise: 54 dBa (B720)
- Max. noise: 65 dBa (B2400)
