All-in-one, T1/E1 to 100G
VeEX® VePAL TX300s Family is a fully-integrated and self-contained multi-service test solution for OTN, SDH, SONET, PDH, DSn, Fibre Channel, Ethernet, Mobile Backhaul, CPRI/OBSAI and Fiber Optics networks. Equipped with SyncE, 1588v2 PTP, and CPRI/OBSAI test options, the unit offers unprecedented synchronization turn-up and troubleshooting test functions for mobile operators migrating to 4G LTE. Powered by the VeExpress™ system, TX300s users are able to share test options, either purchased or leased, with multiple devices, dramatically reducing Opex and Capex.
Hardware Options

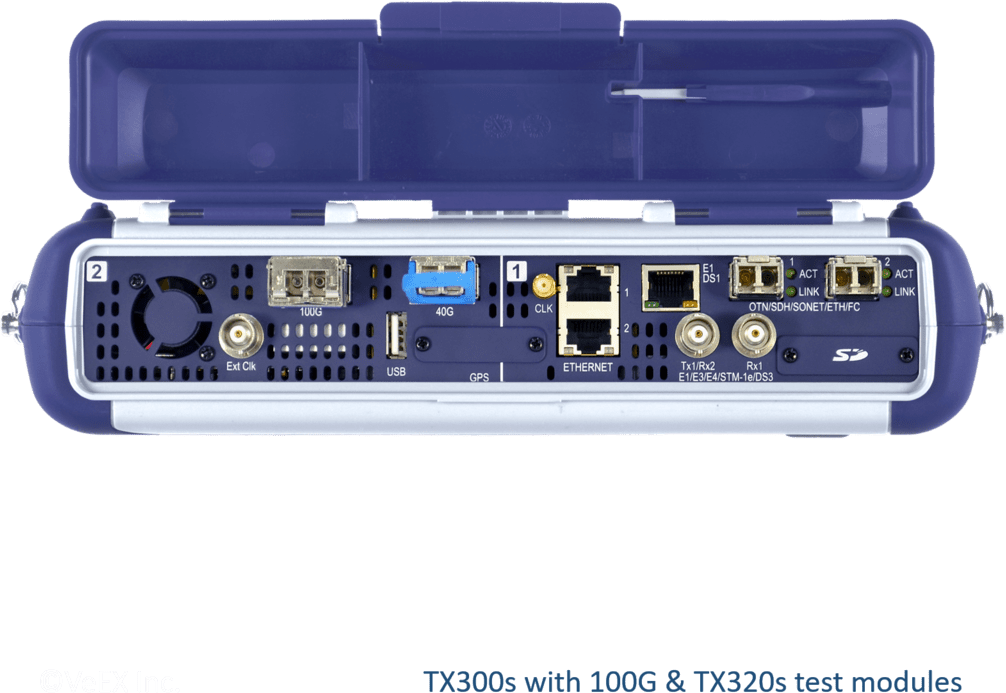

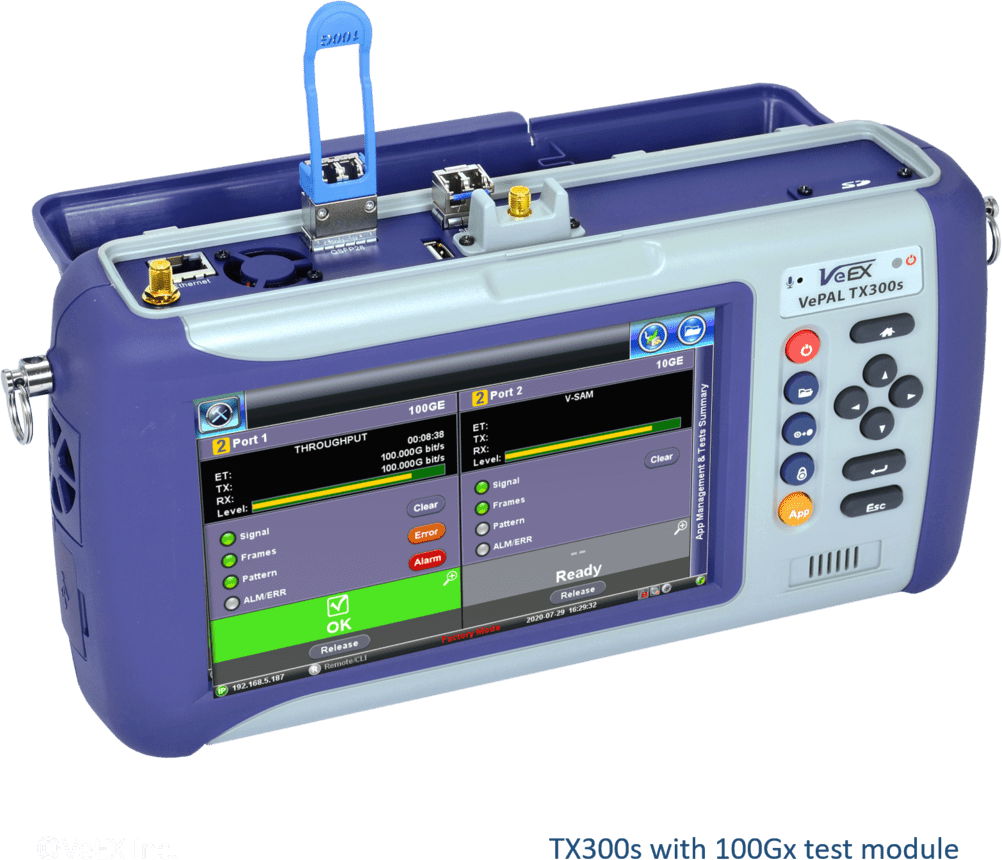

TX300s-100GX
The TX300s-100G hardware option for the TX300s platform offers a full-featured portable test solution for Ethernet, Mobile Backhaul, Storage Area Networks, OTN, SDH/SONET links and services testing — 40 Gbps and 100 Gbps. This factory-installed hardware option allows flexibility to fit any application. Available in CFP4 and QSFP28 versions.
TX340s

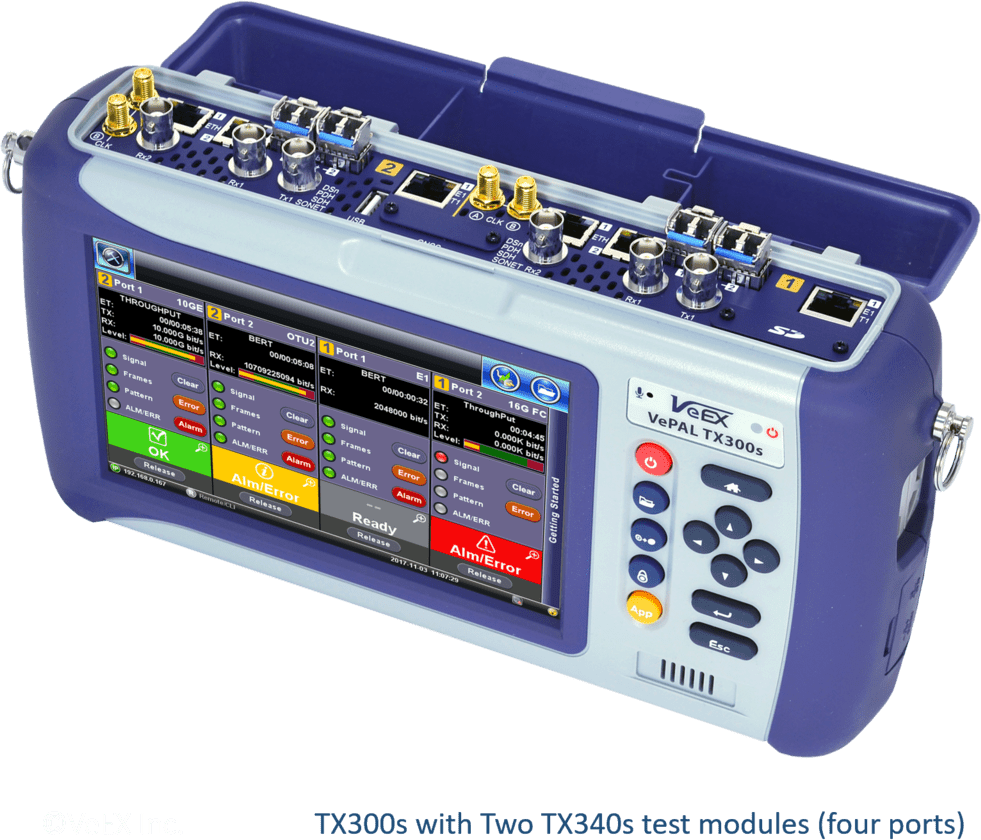

The TX340s hardware option for the TX300s portable test platform offers advanced test solutions for OTN, SONET/SDH, PDH/DSn, Carrier Ethernet, Fibre Channel and CPRI/OBSAI. This factory-installed hardware option allows flexibility to fit any application, for example, the addition of a second TX340s, 100G or OTDR module, to be installed concurrently in the same test platform.
TX300s-OTDR

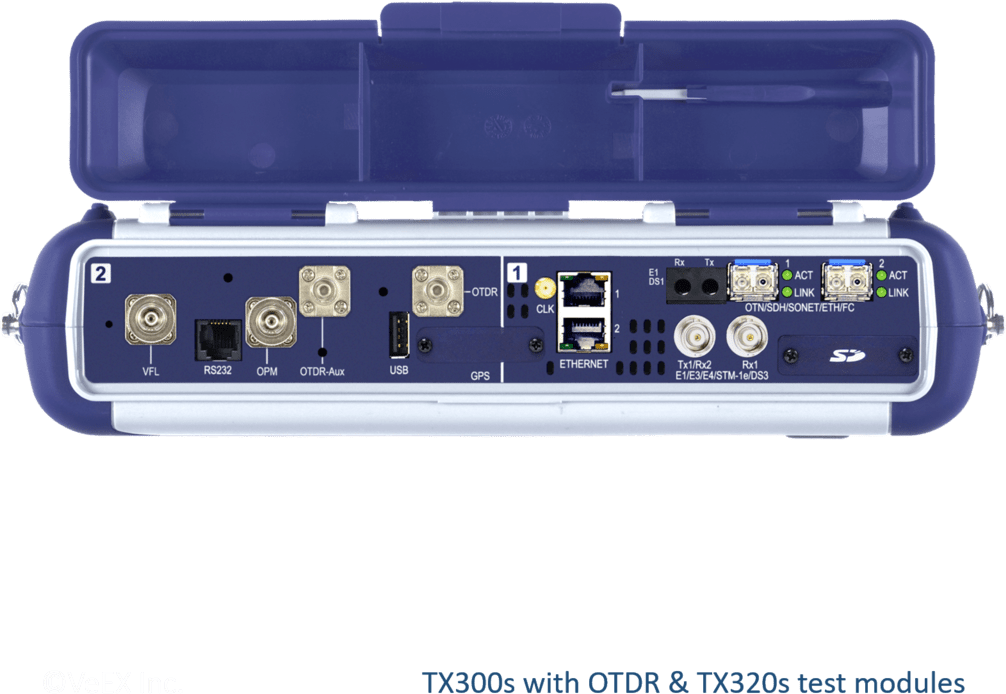

The factory-installed Fiber Optics Hardware Option adds a full range of Optical test features that support OTDR, OPM, Light Source, and VFL, V-Scout optical link mapper, making the TX300s platform a complete network test solution from physical layer up to higher layers of multiservice performance testing.
Module Highlights
- All-in-One hardware platform reduces Capex
- The VeExpress ecosystem allows users to Buy, Rent, Lease-to-own and share test feature licenses
- Optimized for field engineers or technicians installing and maintaining OTN, SDH/SONET, Carrier Ethernet, Fibre Channel, CPRI/OBSAI and Fiber Optics networks transporting legacy and next generation services
- Flexible Software platform allows for multiple test applications running simultaneously

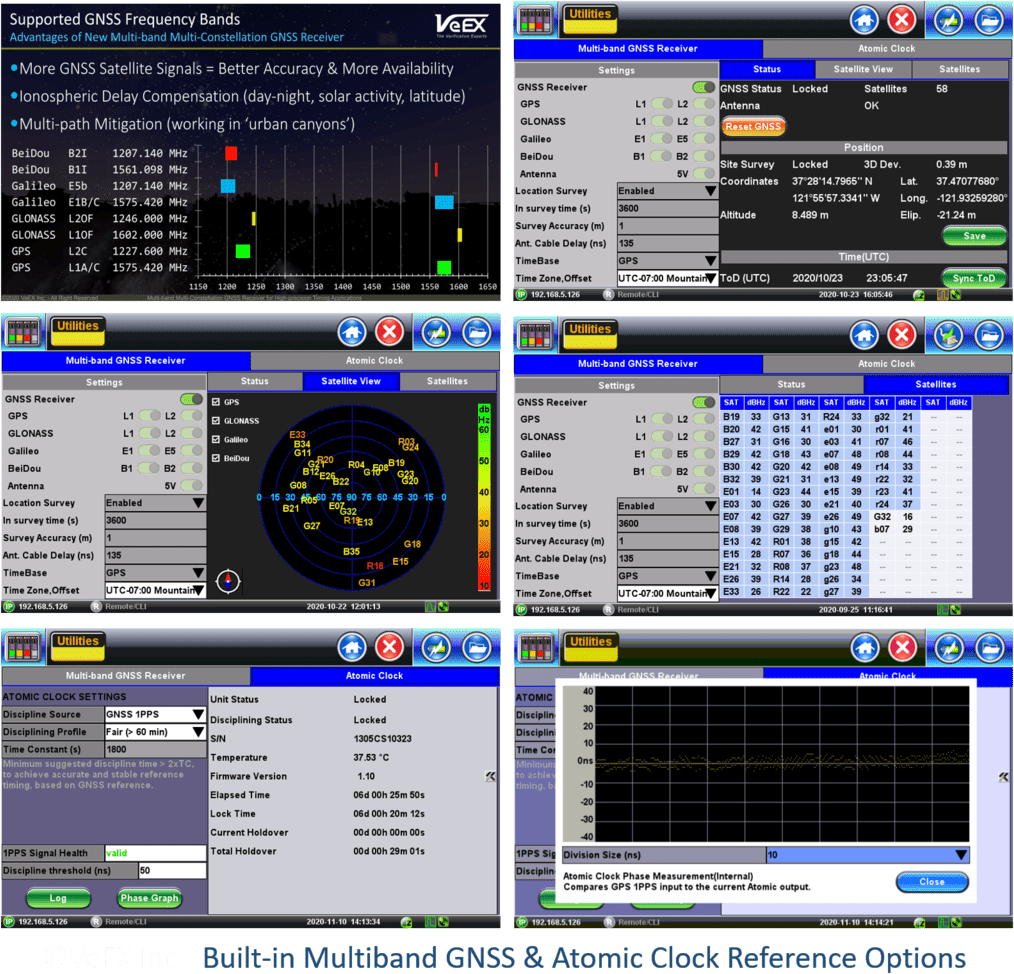

- GPS Receiver and built-in Atomic Clock reference options for frequency, phase and delay measurements
- Available in Single or Dual module versions and optional factory-installed OTDR
- Test set connectivity via Ethernet Management interface, Wi-Fi, Bluetooth®, or Data Card for back office applications and workflow optimization
- User defined test profiles and thresholds
- Fast and efficient test result transfer to USB memory stick
- Interchangeable Li-ion battery pack extends field testing time
- Asset Management: Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using VeExpress
Key Features
- Multi-service Testing
- Ethernet
- Fibre Channel
- OTN, SDH, SONET, PDH, DSn
- EoOTN
- CPRI/OBSAI (DAS)
- OTDR option
- OPX-BOX+ compatible
- Fiber Scope and add-on optical tools
- Wi-Fi Scan & Spectrum Analysis
- Frequency & Phase Synchronization
- Built-in GPS receiver option
- Built-in Atomic Clock option
- Intuitive user interface
- Comprehensive file management and export formats
- Upload reports to centralized R300-Server
- VeExpress client
- Modern connectivity
