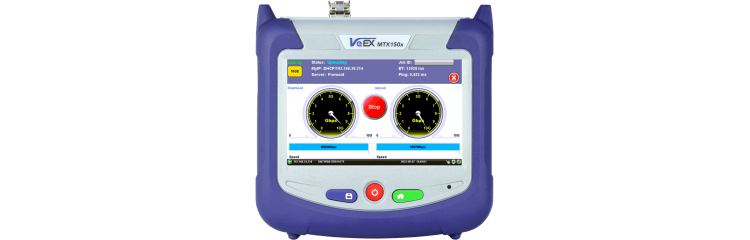

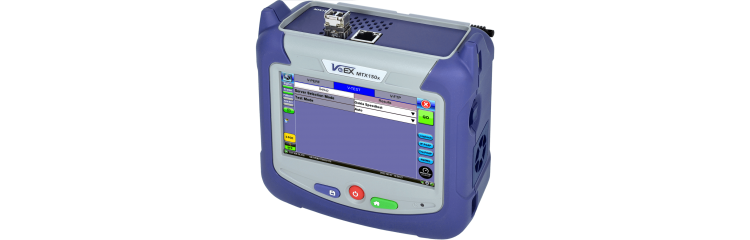

Multi-Gigabit Internet Services & Ethernet Speed Test Solution
The MTX150x Lite is an optimized Quality of Experience (QoE) test solution (Layer 4+ applications) for multi-Gigabit services from 10 Mbps to 10 Gbps on copper and fiber interfaces. This rugged, self-contained, and ultra-portable hand-held test set helps field technicians install, verify, maintain, and troubleshoot high-speed Residential and Business services, Internet Access and other packet-base services up to 10 Gbps. Its native support for 2.5G/5G/10GBASE-T reduces cost of ownership.
Platform Highlights
- The smallest and most powerful test set with native RJ45 1G/2.5G/5G/10GBASE-T and 1G/10GBASE-X QoE test solution on the market. No adapters required
- Operation up to 10 Gbps optical and electrical
- Self-contained and Secure. No additional tablet, smartphone or apps required
- Optimized for field technicians installing, verifying, troubleshooting and maintaining Carrier Ethernet, Business and Gigabit Residential Internet Services
- Field upgradeable licenses to optimize OPEX. Add optional feature like 2.5G, 5G or 10GBASE-T when required
- VeSion® R-Server asset, workflow and results management
- Compatible with VeEX EZ Remote™ collaboration services
- Remote access and control via Web Browser, VNC® client and ReVeal PC software
- Comprehensive local test set connectivity via micro-B USB and optional built-in WiFi and Bluetooth® wireless interfaces; USB-A and 10/100BASE-T are also available via standard OTG cables (LAN adapter not included)
- User defined test profiles and thresholds enable fast, efficient, and consistent turn-up of services
- Fast and efficient test result transfer to USB memory stick
- Fast bootup – ready to test in less than 60 seconds
- Li-ion battery pack for extended field-testing autonomy
Key Features

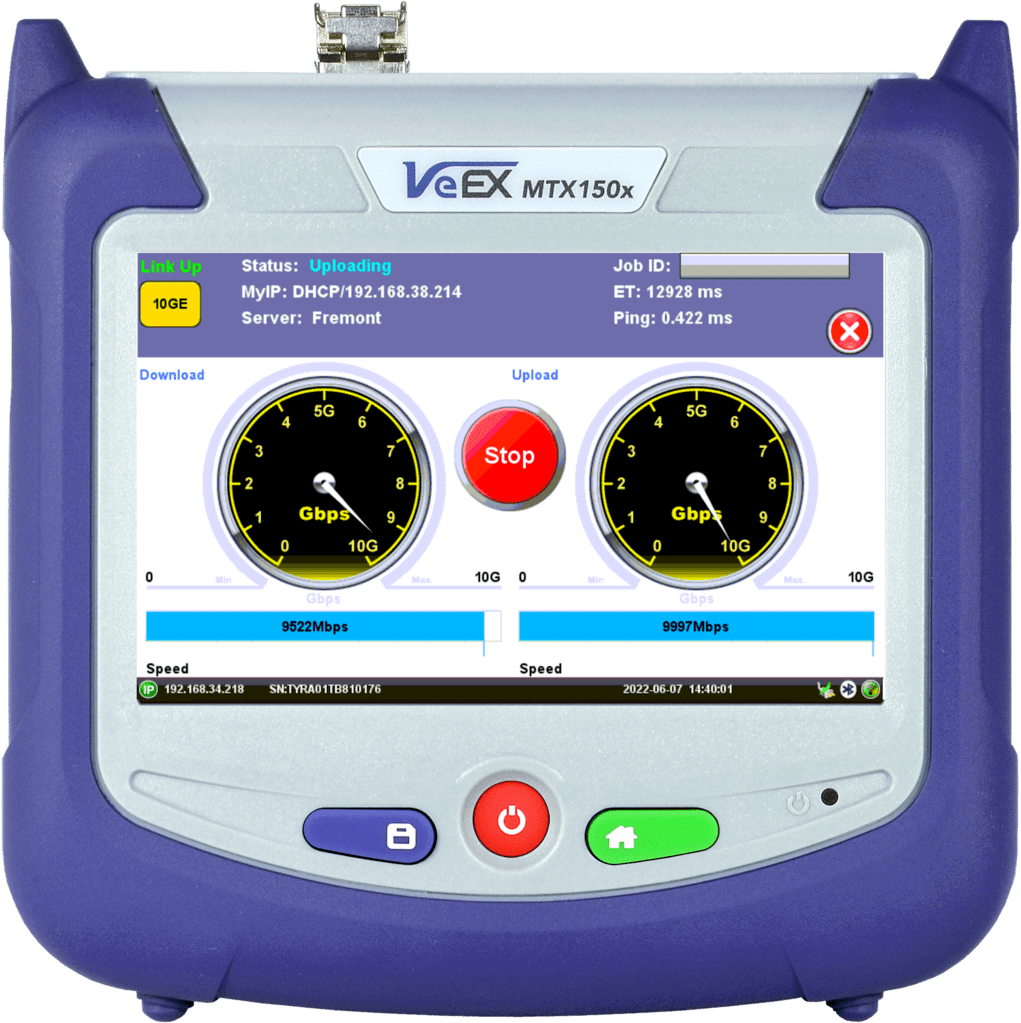

- V-TEST Throughput Test Supports VeEX Mode and Speedtest Powered™ Mode based on Ookla® technology
- V-PERF, support of RFC6349

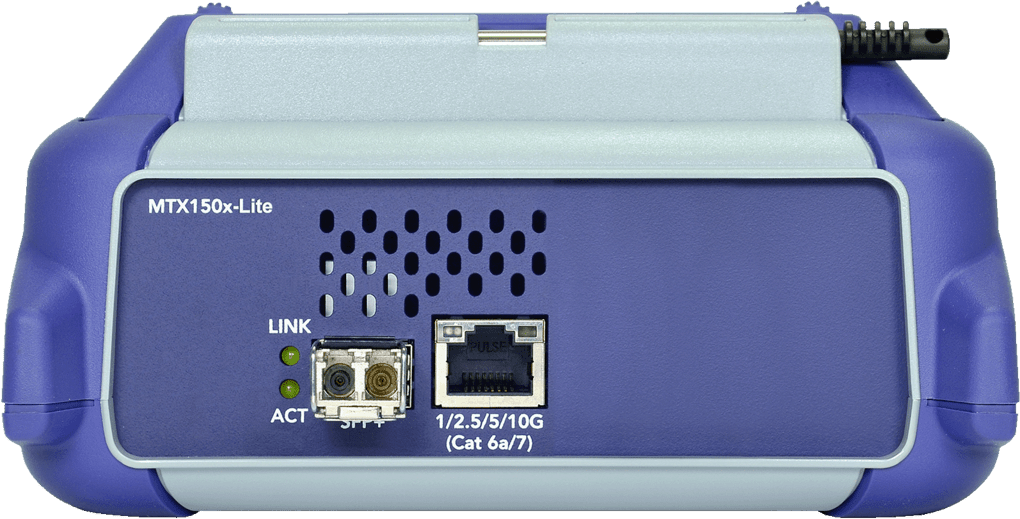

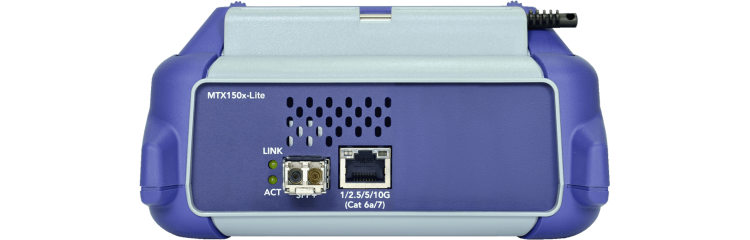

- SFP+ test interface for 100/1000BASE-X and 10GBASE-R
- Built-in RJ45 test with PHY for 10/100/1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T (no adapters required)
- Automatic IP acquisition via DHCP
- Fast boot-up time, ready to test in less than 60 seconds
- PoE detection
- CAT X Cable Checker (Cat 6a/7)
Ethernet
- IPv4/IPv6 and PPPoE, DHCP and static IP
- Ping, trace route, Packet Capture (PCAP) and built-in Wireshark decoding

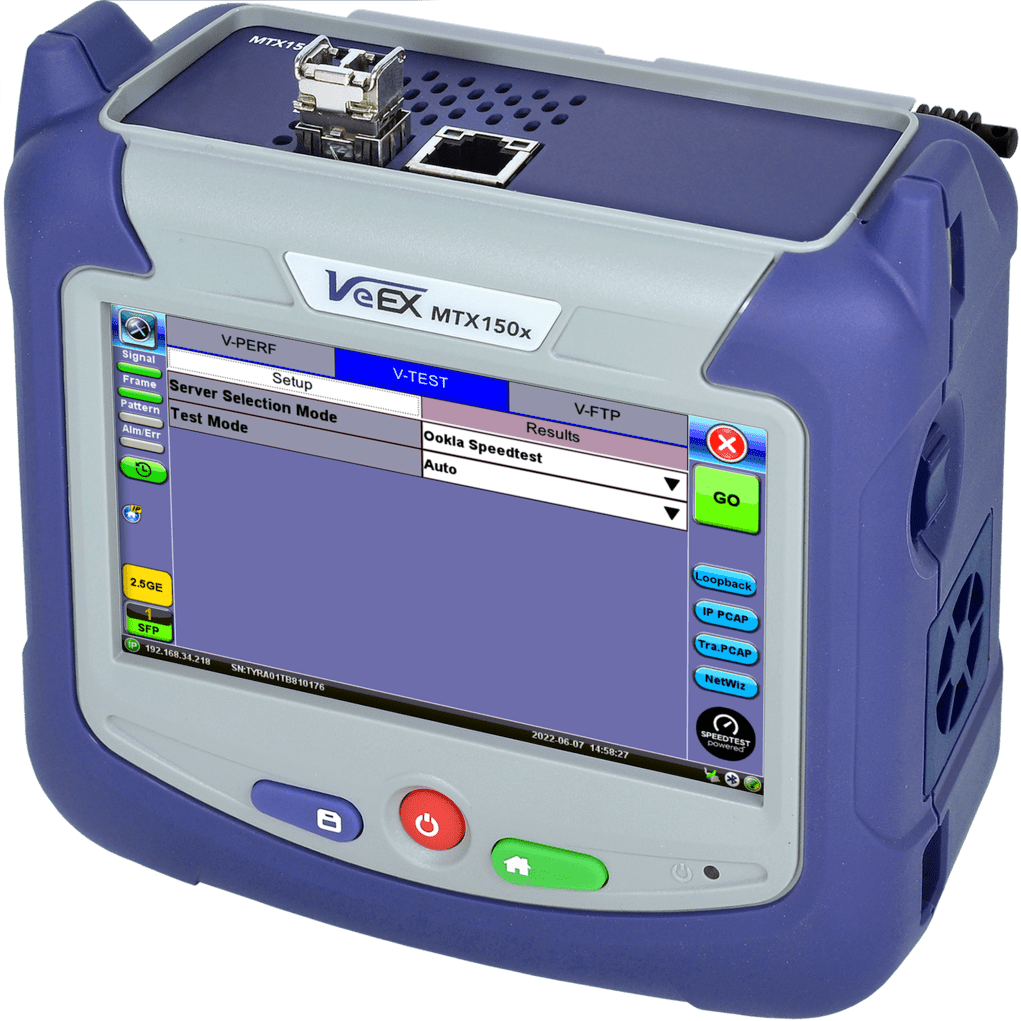

- Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®), V-PERF (RFC6349), V-FTP upload & download tests
