Ethernet Services Installation Test Set

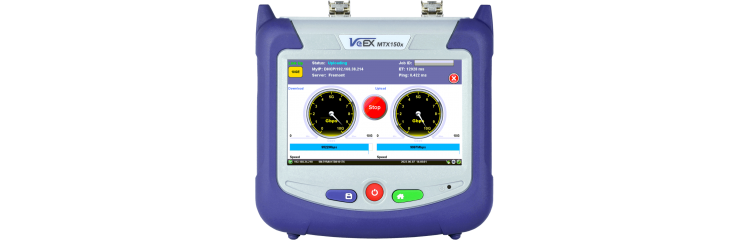

The MTX150x is a fully-integrated and self-contained Ethernet services test solution for Layer 1-to-4+ applications and Fibre Channel (SAN). This rugged and ultra-portable field hand-held test set can be configured with interfaces and technologies required by field technicians to install, verify, maintain and troubleshoot Metro Ethernet links, Business services, Internet Access and other packet-base services up to 10 Gbps. Its native support for 2.5G/5G/10GBASE-T reduces cost of ownership.
Platform Highlights
- The smallest full-featured Ethernet solution on the market with native RJ45 1G/2.5G/5G/10GBASE-T and 1G/10GBASE-X support. No adapters required
- Lower cost. Equip more field technicians and crews
- Dual port operation up to 10 Gbps
- Optimized for field technicians installing, verifying, troubleshooting and maintaining Carrier Ethernet, Metro, Access, Business Services, and Storage Area Networks, as well as fiber, backhaul, microwave links.
- Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions
- Flexible hardware configuration to meet each application’s requirements and reduce CAPEX
- Field upgradeable licenses to optimize OPEX
- Test set connectivity via micro-B USB and optional built-in Wi-Fi and Bluetooth® wireless interfaces; USB-A and 10/100BASE-T are also available via OTG cables
- VeSion R-Server asset, workflow and results management
- Remote access and control via Web Browser, VNC® client and ReVeal PC software. Compatible with VeEX EZ Remote collaboration services.
- User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
- Fast and efficient test result transfer to USB memory stick
- Li-ion battery pack for extended field testing autonomy
Key Features
- Complete Ethernet (LAN/WAN) and Fibre Channel (SAN) Testing

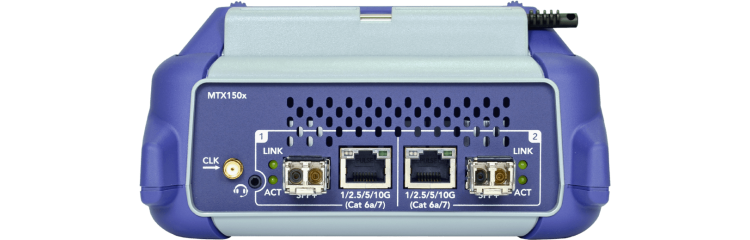

- Dual SFP+ Optical Interfaces for 100/1000BASE-X, 10GBASE-X and 4/2/1GFC

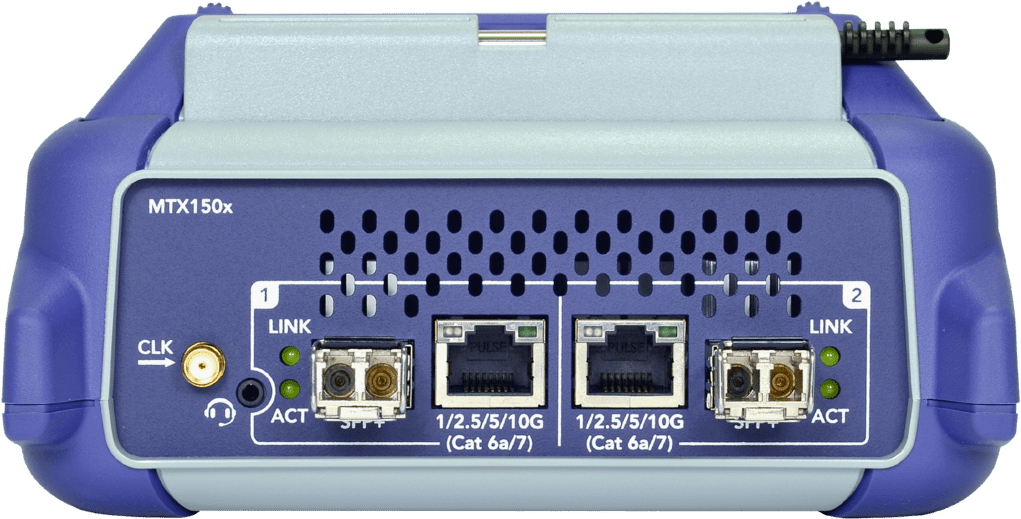

- Built-in dual RJ45 for 10/100/1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T (no adapters required)
Ethernet
- Dual-port testing capabilities
- Throughput, BERT, IPv4/IPv6, Loopbacks, NetWiz, Ping, trace route, Scan, L2CP Transparency, Errors, Alarms, Events, Delay, Test Profile Auto Scripting/Sequencer
- RFC2544 Throughput, latency, frame loss and back to back tests
- V-SAM test suite compliant with ITU-T Y.1564 standard
- Q-in-Q (VLAN stacking), MPLS, MPLS-TP, PBB, and PPPoE support
- 8 Streams, 3 VLAN, 3 MPLS, TCP/UDP

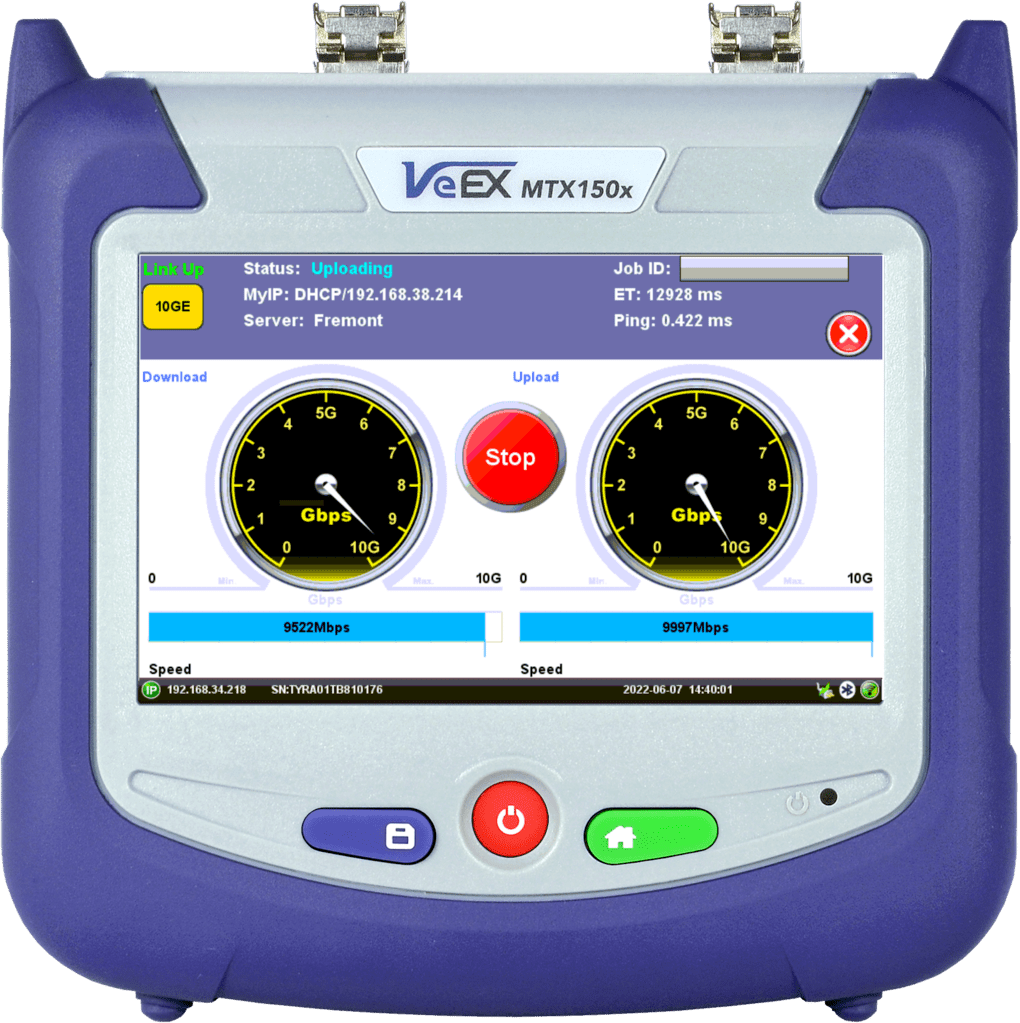

- Layer 4+ test suite: V-TEST (speed test), V-FTP, RFC6349 V-PERF upload & download tests
Fibre Channel
- Dual-port Storage Area Networks (SAN) testing
- Throughput, BERT, Loopback, SDT, Errors, Alarms, Events, Delay
- RFC2544: Throughput, latency, frame loss, back to back tests
